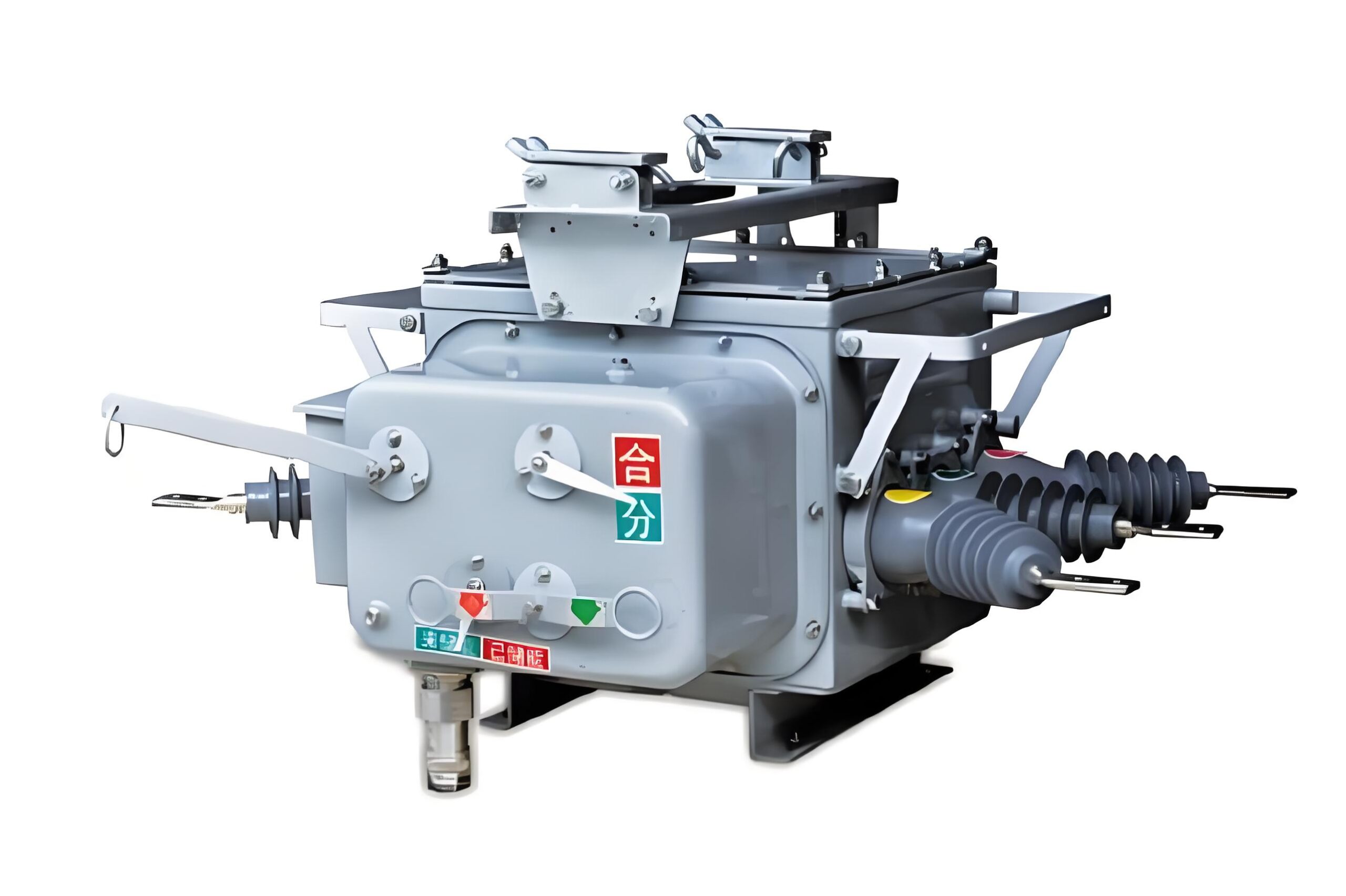

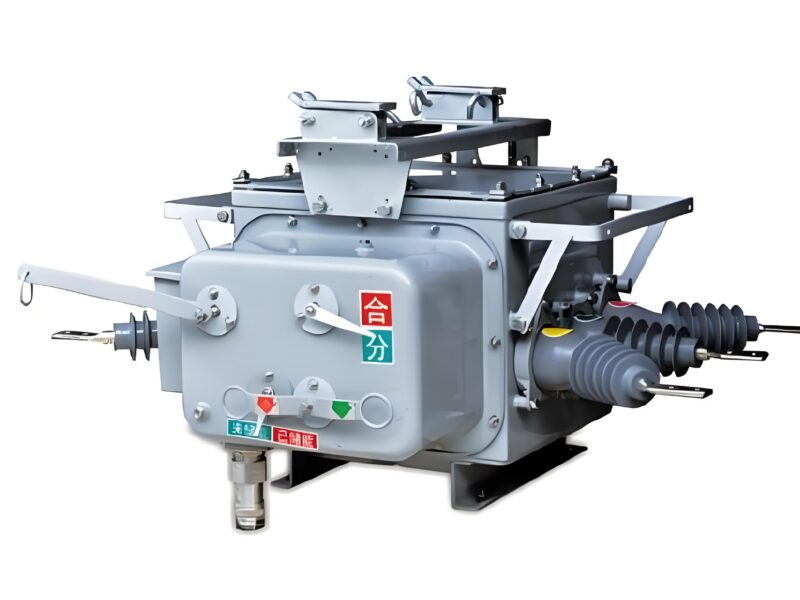

Detailed Advantages of ZW20-12F/630 Pole-Mounted Vacuum Circuit Breaker

The ZW20-12F/630 pole-mounted vacuum circuit breaker is a smart switchgear designed for 12kV distribution lines, widely used in urban grids, rural power networks, industrial parks, and enterprise substations. Its design fully considers environmental adaptability, operational reliability, and intelligent control requirements, offering the following advantages:

1. Excellent Insulation Performance and High Safety

Features a fully enclosed, fully insulated structure, with an outer shell typically made of stainless steel or high-strength alloy material. With a protection level up to IP67, it effectively prevents rain, dust, and condensation from entering, making it suitable for harsh environments.
- Keyword: Pole-mounted vacuum circuit breaker – Reliable insulation
The vacuum interrupter ensures excellent arc extinction performance. After breaking, the gas in the contact gap quickly restores insulation, preventing re-ignition and improving grid stability.
- Keyword: Pole-mounted vacuum circuit breaker – Vacuum arc extinction
High voltage withstand capability, resistant to lightning strikes and voltage fluctuations, ensuring safe operation of the power grid.
- Keyword: Pole-mounted vacuum circuit breaker – Lightning protection
- Pole-Mounted Vacuum Circuit Breaker

2. Stable Operation with High Intelligence

Supports remote control, can be integrated with a Feeder Terminal Unit (FTU) to enable remote operation, monitoring, signaling, and adjustment, enhancing power distribution automation while reducing manual inspection workload.
- Keyword: Pole-mounted vacuum circuit breaker – Remote control
Equipped with a self-power supply function, using CT-induced power collection, eliminating the need for an external power source and ensuring operation even in power outage conditions.
- Keyword: Pole-mounted vacuum circuit breaker – Self-powering
Intelligent fault detection automatically identifies short circuits, overloads, and grounding faults, working in conjunction with auto-reclosing to improve supply reliability and reduce outage duration.
- Keyword: Pole-mounted vacuum circuit breaker – Fault detection
Optional current transformers (CT) and voltage transformers (PT) provide real-time monitoring of current, voltage, and power, supporting smart grid operations.
- Keyword: Pole-mounted vacuum circuit breaker – Operational monitoring

3. Long Mechanical Life with Low Maintenance Costs

Uses a high-reliability spring or permanent magnet operating mechanism, ensuring long lifespan and fast operation:
- Spring mechanism: Simple structure, low maintenance, suitable for standard applications.
  - Keyword: Pole-mounted vacuum circuit breaker – Spring mechanism
- Permanent magnet mechanism: No mechanical wear, ideal for frequent operation, especially in smart grids.
  - Keyword: Pole-mounted vacuum circuit breaker – Permanent magnet mechanism
Mechanical lifespan exceeds 10,000 operations, significantly longer than traditional oil circuit breakers (typically 2,000-5,000 operations).
- Keyword: Pole-mounted vacuum circuit breaker – Long lifespan
Vacuum arc extinction requires no oil or SF6 gas, making it environmentally friendly and eliminating issues related to gas leakage or refilling, reducing operational costs.
- Keyword: Pole-mounted vacuum circuit breaker – Maintenance-free
- Pole mounted vacuum circuit breaker

4. Compact Size and Easy Installation

Compact design, lightweight, ideal for pole-mounted installations, especially in rural networks, urban grid upgrades, and distributed power networks.
- Keyword: Pole-mounted vacuum circuit breaker – Lightweight installation
Supports single-pole or double-pole mounting, allowing flexibility to adapt to different distribution network structures.
- Keyword: Pole-mounted vacuum circuit breaker – Installation methods
Equipped with an electric operating mechanism and controller, enabling automated operation and eliminating the need for manual pole climbing, enhancing safety.
- Keyword: Pole-mounted vacuum circuit breaker – Automated operation
- Pole mounted circuit breaker

5. Strong Environmental Adaptability and Stable Operation

The ZW20-12F/630 pole-mounted vacuum circuit breaker is highly adaptable to harsh environments:

Resistant to extreme temperatures, operating in environments ranging from -40°C to 70°C, making it suitable for both cold and hot regions.
- Keyword: Pole-mounted vacuum circuit breaker – Temperature resistance
High pollution resistance, with a pollution level rating of III or above, suitable for coastal, desert, and heavily industrialized areas.
- Keyword: Pole-mounted vacuum circuit breaker – Pollution resistance
Strong earthquake resistance, withstanding up to an 8.0 magnitude earthquake, making it ideal for earthquake-prone regions.
- Keyword: Pole-mounted vacuum circuit breaker – Seismic resistance
High corrosion resistance, using weather-resistant materials like stainless steel and aluminum alloy, ensuring long-term performance in humid, high-salt environments such as coastal areas.
- Keyword: Pole-mounted vacuum circuit breaker – Corrosion resistance

6. Comprehensive Protection Features for Reliable Power Supply

The ZW20-12F/630 pole-mounted vacuum circuit breaker offers advanced protection functions to ensure safe grid operation:

Short circuit protection (instantaneous trip): Quickly isolates faults to prevent damage to the power grid.
- Keyword: Pole-mounted vacuum circuit breaker – Short circuit protection
Overcurrent protection: Prevents damage from prolonged overloads.
- Keyword: Pole-mounted vacuum circuit breaker – Overcurrent protection
Zero-sequence protection: Detects grounding faults, enhancing power distribution safety.
- Keyword: Pole-mounted vacuum circuit breaker – Zero-sequence protection
Automatic reclosing function, supporting 1-3 reclosing cycles, allowing automatic power restoration after temporary faults, reducing outage times.
- Keyword: Pole-mounted vacuum circuit breaker – Auto-reclosing

7. High Cost-Effectiveness for Power Grid Upgrades

Compared to traditional oil circuit breakers, the ZW20-12F/630 pole-mounted vacuum circuit breaker is maintenance-free, pollution-free, and does not use flammable media, significantly lowering long-term operational costs.
- Keyword: Pole-mounted vacuum circuit breaker – Cost-effectiveness
Supports smart grid transformation, integrating with DTU/FTU for remote control, enabling unmanned operation and improving supply reliability.
- Keyword: Pole-mounted vacuum circuit breaker – Smart grid upgrade
Ideal for urban grid automation upgrades, new substations, and rural grid modernization, aligning with national smart grid development strategies.
- Keyword: Pole-mounted vacuum circuit breaker – Power grid modernization

Conclusion

The ZW20-12F/630 pole-mounted vacuum circuit breaker offers superior insulation, high intelligence, long lifespan, minimal maintenance, and strong environmental adaptability, making it an ideal choice for power distribution automation and smart grid upgrades. Its remote monitoring, fault detection, and auto-reclosing functions significantly enhance power reliability and operational efficiency, making it widely used in urban grids, rural networks, and industrial parks.
