Considerations for the Use of Pole-Mounted Circuit Breakers

Pole-mounted circuit breakers are essential equipment in power systems, widely used in high-voltage distribution lines to protect electrical circuits and equipment. They can quickly disconnect the circuit in the event of an electrical fault, preventing electrical fires, equipment damage, and cascading system failures. To ensure the safe and stable operation of pole-mounted circuit breakers, there are several important considerations, particularly when it comes to voltage requirements and selection, as proper voltage settings are crucial for reliable operation.

This article will discuss in detail the considerations for using pole-mounted circuit breakers and highlight how to choose and use the appropriate voltage levels.

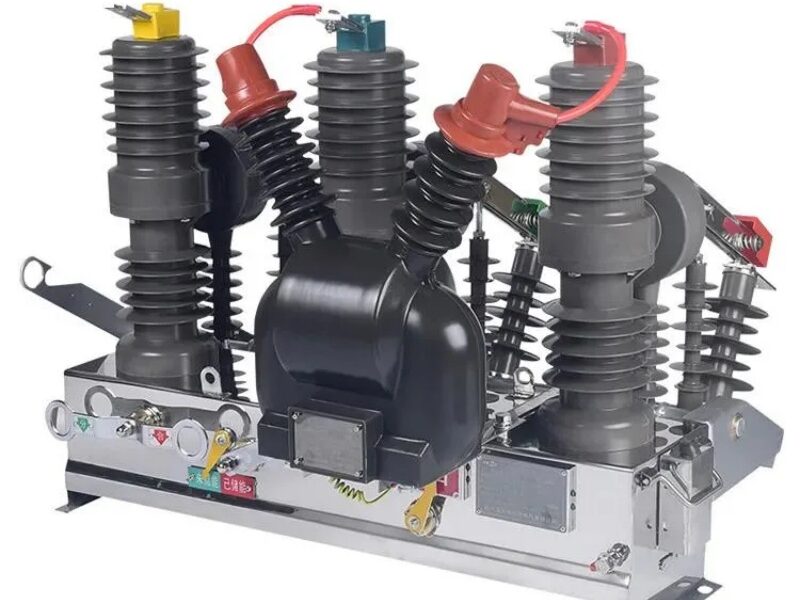

Pole mounted circuit breaker
Pole mounted circuit breaker

1. Pre-installation Inspection

  • Check Product Specifications and Parameters: Before installing a pole-mounted circuit breaker, ensure that its specifications, rated voltage, rated current, and other parameters match the actual application requirements. Pole-mounted circuit breakers are commonly used in systems with rated voltages of 10kV, 12kV, 15kV, 20kV, or 35kV. Based on the actual voltage needs and load conditions, choose the appropriate model to ensure safety and stability.
  • Check for Damage: Inspect the pole-mounted circuit breaker for any visible damage or defects that could affect its normal operation.
  • Confirm Completeness of Accessories: Ensure that all accessories (such as terminal blocks, brackets, etc.) are complete and meet quality standards to ensure proper installation and use.

2. Installation Considerations

  • Correct Wiring: The wiring of the pole-mounted circuit breaker must follow the electrical schematic and the manufacturer’s provided wiring instructions. Pay special attention to the connections for high-voltage and low-voltage lines to avoid miswiring or loose connections that could cause equipment damage or electrical faults.
  • Proper Grounding: The outer casing of the pole-mounted circuit breaker should be properly grounded to ensure electrical safety. Grounding is particularly important for high-voltage systems to prevent leakage or electrical accidents.
  • Installation Environment: Pole-mounted circuit breakers should be installed in dry, ventilated environments without corrosive gases. Environments with high temperature, humidity, or excessive dust can lead to equipment malfunctions or reduced insulation performance.
  • Protection Measures: Protective covers or isolation devices should be installed to prevent personnel from coming into contact with high-voltage parts and ensure operational safety.

3. Operational Considerations

  • Avoid Overloading: The load on the pole-mounted circuit breaker should be within its rated range. Based on the load conditions of the power system, set the rated current of the breaker appropriately to avoid overloading, which could cause equipment damage, especially in high-voltage systems (e.g., 20kV or 35kV), where overloading can lead to severe failures.
  • Regular Inspections: Regularly check the operating status of the pole-mounted circuit breaker, especially in the case of weather changes, aging equipment, or abnormal loads. Timely inspections and maintenance can prevent failures.
  • Keep a Safe Distance from High-Voltage Parts: Operators should wear appropriate personal protective equipment and maintain a safe distance from the breaker’s high-voltage components to avoid electric shock accidents. All operators should undergo professional training to familiarize themselves with the operating procedures.
  • Overcurrent Protection: Pole-mounted circuit breakers generally have overcurrent protection functions. Regularly check the sensitivity and accuracy of the overcurrent protection function to ensure that it can disconnect the circuit promptly during faults to protect the power equipment.

4. Maintenance and Upkeep

  • Regular Inspection of Switching Mechanisms: The switching mechanisms of the pole-mounted circuit breaker, including the electric operating device and spring mechanisms, should be regularly inspected to ensure smooth operation without obstruction. This helps prevent failures caused by mechanical wear.
  • Check Insulation Performance: Regularly check the insulation performance of the pole-mounted circuit breaker, particularly in high-voltage environments. In humid or polluted environments, the insulation performance may degrade, increasing the risk of faults.
  • Cleaning and Lubrication: Regularly clean both the internal and external parts of the pole-mounted circuit breaker to remove dust, corrosive materials, etc., in order to maintain optimal operating conditions. Also, lubricate moving parts to reduce friction and prevent mechanical failure.
  • Check Protection Settings: Regularly check the overload and short-circuit protection settings of the pole-mounted circuit breaker to ensure they are sensitive and accurate, allowing the breaker to disconnect the circuit in the event of a fault.

5. Troubleshooting

  • Fault Analysis: If a fault occurs in the pole-mounted circuit breaker, diagnose the issue based on fault symptoms and alarm signals. Common issues include poor contact, stuck switches, or faults in the control circuit.
  • Inspect Electrical Connections: Check for loose, oxidized, or poor electrical connections, ensuring that all contact points are secure. In high-voltage systems, poor connections can lead to severe faults or arc generation.
  • Regular Electrical Performance Calibration: Regularly test the electrical performance of the pole-mounted circuit breaker to ensure that its response time, overload capability, and other performance metrics meet design specifications.

6. Safety Considerations

  • Strict Adherence to Operating Procedures: Operators must strictly follow safety operating procedures and wear appropriate protective equipment, such as insulated gloves and shoes, to avoid electric shock accidents. Safety measures are particularly critical in high-voltage environments.
  • Emergency Shutdown Procedures: In case of abnormalities, operators should immediately take emergency shutdown actions and disconnect the power to prevent the electrical incident from escalating.
  • Professional Training for Personnel: Operators should receive professional training to understand the use, maintenance, and troubleshooting of pole-mounted circuit breakers to ensure safe and reliable operation.

7. Environmental and Climatic Effects

The performance of pole-mounted circuit breakers can be significantly affected by environmental and climatic conditions, especially under extreme weather, such as high temperatures, humidity, cold, or dust storms. The following factors should be considered during installation:

  • Moisture and Corrosion Protection: In humid areas, the insulation of pole-mounted circuit breakers may degrade, so moisture protection measures should be taken. Corrosion-resistant materials should be used to prolong the service life of the equipment.
  • Wind Resistance: In areas with strong winds, pole-mounted circuit breakers should be designed to withstand wind pressure to prevent damage due to high wind forces.
  • High-Temperature Protection: In high-temperature environments, pole-mounted circuit breakers should be designed with effective heat dissipation systems to prevent overheating and potential damage.

Conclusion

Pole-mounted circuit breakers are essential safety devices in power systems, and proper usage, regular maintenance, and appropriate voltage selection are critical for ensuring the stability and safety of the electrical system. Depending on the voltage level (e.g., 10kV, 12kV, 15kV, 20kV, 35kV), it is essential to select the appropriate pole-mounted circuit breaker to ensure that the equipment operates safely and reliably in high-voltage environments. By following the installation, operational, and maintenance considerations discussed above, the service life of the equipment can be extended, and the likelihood of failures can be minimized, thereby ensuring the overall reliability and safety of the power system.
